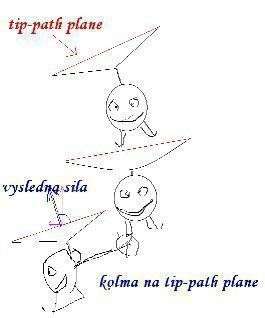

Ok Kdyz se podivas ze strany na tocici se rotor, tak tip-path plane je ta rozmazana rovna placka na urovni koncu listu. To znamena, ze je uplne jedno, jak jsou listy ohnute nebo rovne.
FAA Rotorcraft handbook str.3-5
In or during forward flight, the tip-path plane is tilted forward, thus tilting the total lift-thrust force forward from the vertical.
str.3-1:
In powered flight (hovering, vertical,forward, sideward or rearward), the total lift and thrust forces of rotor are perpendicular to the tip-path plane or plane of rotation of the rotor. |
|
